770 KVA-10.5/0.585 KV Dry Type Transformer

General introduction of   770 KVA-10.5/0.585 KV Dry Type Transformer

Product Introduction We are thrilled to announce that our company will be exporting a top-of-the-line 770kVA-10.5/0.585kV dry-type transformer to Indonesia in May 2023. This is an amazing accomplishment for our team and highlights our dedication to providing the best quality products to our...

  • Introduction
  • Contact Now

Product Introduction

We are thrilled to announce that our company will be exporting a top-of-the-line 770kVA-10.5/0.585kV dry-type transformer to Indonesia in May 2023. This is an amazing accomplishment for our team and highlights our dedication to providing the best quality products to our clients.The transformer is equipped with AN cooling, making it highly efficient and reliable. The connection group is Dyn5, which ensures the smooth operation of the transformer. With no-load tap changer, this transformer is designed to meet even the most demanding requirements.Another noteworthy feature of the transformer is its aluminum winding. This makes it lighter and easier to install, while still providing exceptional performance. As a company, we always strive to use the latest technology and materials to develop products that meet our customers' needs.Our team is proud to be a part of this project, and we are grateful for the opportunity to showcase our expertise in the field of electrical transformers. We are confident that this product will perform beyond expectations and contribute to the growth and development of the Indonesian market.In conclusion, we are honored to export the 770kVA-10.5/0.585kV dry-type transformer to Indonesia.



We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!



Advantages

Fire resistant /Self-extinguishing(F1)

Environmental class(E2) and climatic class (C2)

From IP00-IP56 enclosure with AN, AF, ANAF or AFWF cooling

Maintenance free

Environmental friendly ,>90% of material recyclable



Temperature control system

Built-in PT100 probes in 3 phase windings to detect the real-time temperature of windings and cycle display them in the digital screen.

Open circuit alarm and fault self-check alarm display and signal output.

3 stages automatically actions while the temperature reached to the set value, 1st stage the cooling fans start automatically, 2nd stage high temperature alarm,3rd stage over temperature trip.

Fans manual/auto control switch, timing start/stop, history data output.

4-20mA current output

RS485 Modbus communication protocol

Environment temperature measurement

Core temperature measurement



Scope of Supply

Product: resin cast dry type transformer

Voltage level: up to 35KV

Rating level: up to 20MVA

The transformer can be designed according to customer’s requirements



Technical Data Sheet

5000 KVA Dry Type Transformer specifications and data sheet

Delivered to

Indonesia

Year

2023

Model

SCB-770kVA-10.5/0.585kV

Type

Resin cast dry type transformer

Standard

IEC60076

Rated Power

770 kVA

Frequency

50 HZ

Phase

Three

Cooling Type

AN

Primary Voltage

10.5 kV

Secondary Voltage

0.585 kV

Winding Material

Copper

Vector Group

Dyn11

Impedance

5~7%

No Load Loss

1800 W

On Load Loss

7100 KW

Accessories

Temperature controller, Skids, lifting lugs & pulling eyes,

Remarks

N/A







770kVA-10.5/0.585kV Transformer Drawing

770 kVA transformer diagram drawing and size.

Transformer drawing1

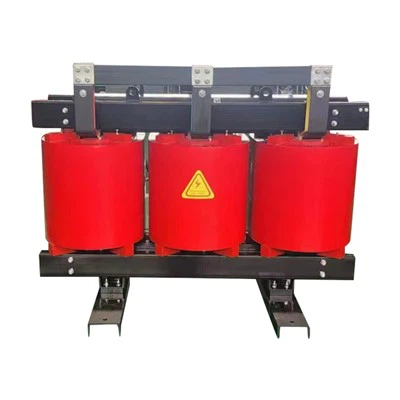

Finished 770kVA-10.5/0.585kV Transformer

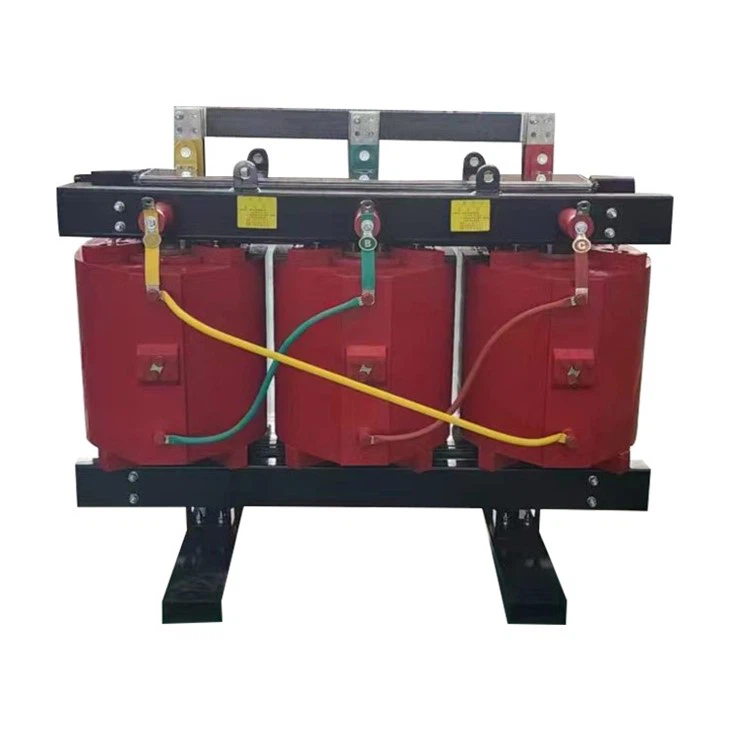

770kVA dry type transformer

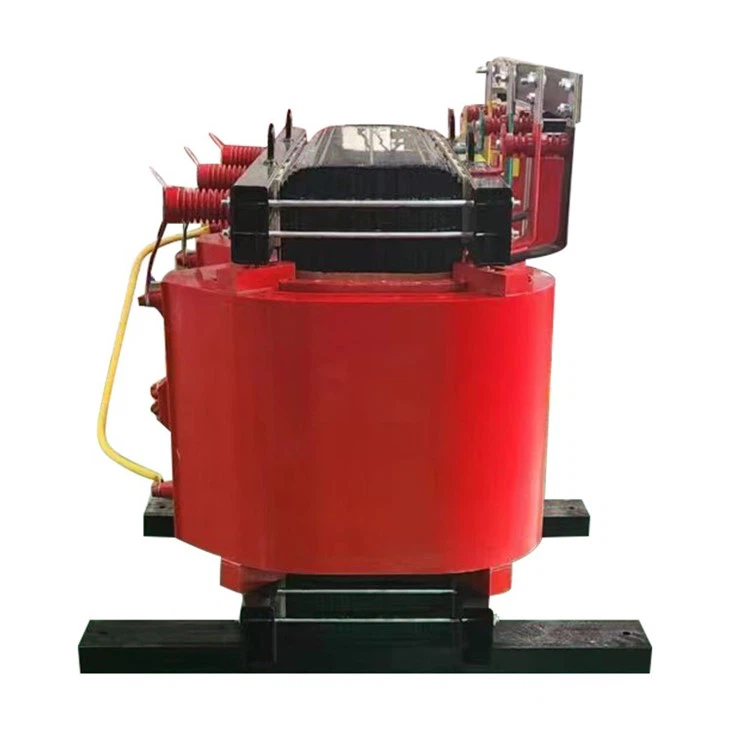

transformer HV side

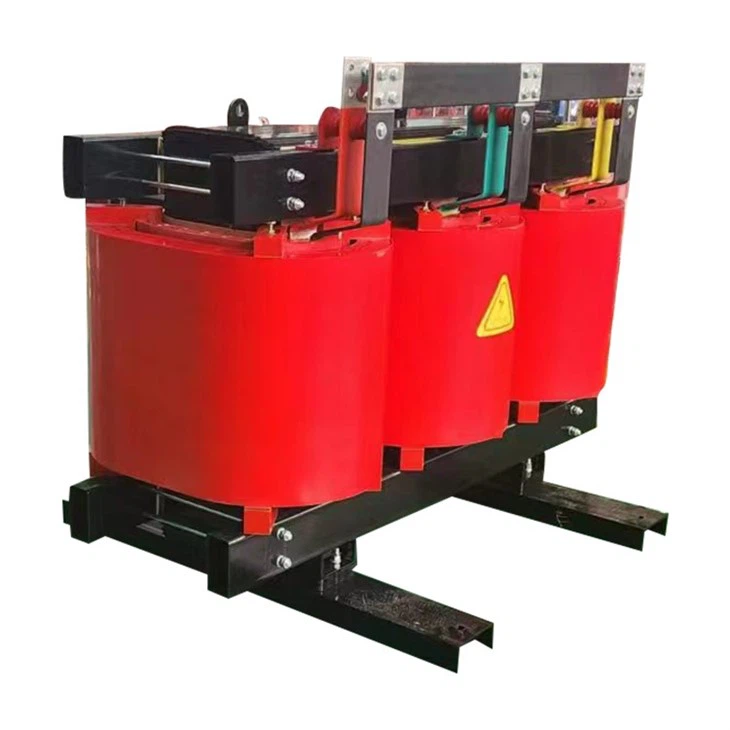

105kV dry type transformer

The epoxy resin dry type transformer has the characteristics of good electrical performance, strong lightning impact resistance, strong short-circuit resistance, small size, and light weight. The temperature display controller can be installed to display and control the operating temperature of the transformer windings to ensure the normal service life of the transformer.



The advantage for cast resin dry type transformer

Cast resin dry type transformers are a fantastic choice for energy distribution in several industrial and commercial applications. These transformers feature a cutting-edge design that offers several advantages over more traditional oil-filled transformers. Some of the key advantages of cast resin dry type transformers include the following:

1. Highly Efficient: Cast resin dry type transformers are highly efficient, offering a high level of energy savings over their oil-filled counterparts. This efficiency means that manufacturers and businesses can reduce their operating costs and enhance their bottom line.

2. Easy to Maintain: Cast resin dry type transformers are relatively easy to maintain and require minimal upkeep. They do not require oil changes or oil testing like oil-filled transformers, which saves time and resources.

3. Safe: Cast resin dry type transformers are incredibly safe, with no possibility of oil spills or leaks that could create hazardous conditions. This makes them an excellent choice for areas with stringent safety requirements, such as hospitals and schools.



4. Durable: Cast resin dry type transformers are highly durable and can withstand harsh environments, such as high humidity or extreme temperatures. They also have a long lifespan, providing several decades of reliable service.

5. Environmentally Friendly: Cast resin dry type transformers do not contain any toxic substances such as PCBs. Furthermore, they are recyclable, making them an eco-friendly option for businesses that are mindful of their environmental impact.

Overall, the cast resin dry type transformer provides many advantages over traditional oil-filled transformers, making them an excellent choice for various applications.

FAQ

1. Where is your main market?

We had exported our transformers to more than 50 countries in the world, our main market is Africa countries, South and North American countries, and Asia countries.

2. What certificate do you have?

We have KEMA, CESI, CTQC type test report for our transformers.

3. How long is your delivery time?

30 days after drawing confirmed by buyer for distribution transformers below 5000kva, bigger transformers depend on the capacity and components, normally 30-90days(with imported components)


Send us your detail requirements, we have professional service team to answer you ASAP!

Thank you for your attention on Vouchivan ELECTRIC!

We offer Oil immersed transformers, Dry type transformers, Compact transformer substations, etc.
